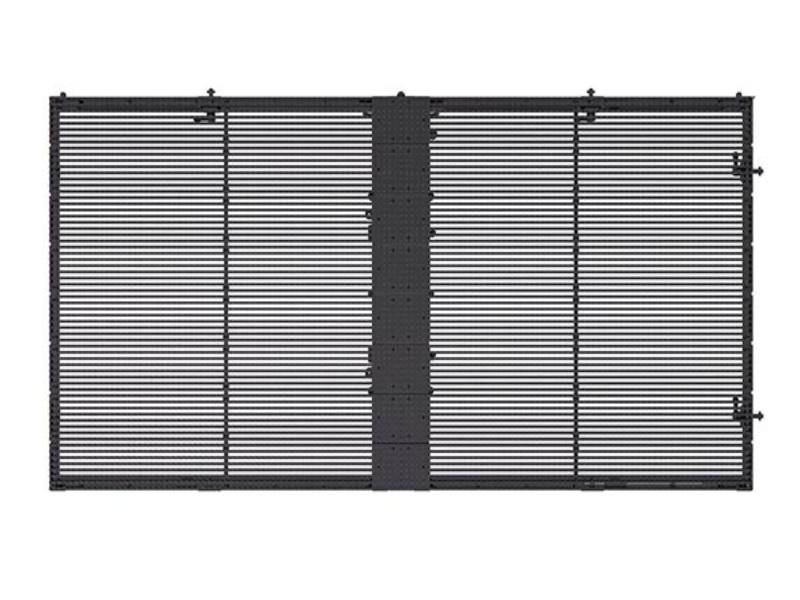

Transparent LED Display Rental
1. Smallest pixel pitch down to 3.9×7.8mm
2. Die-casting aluminum cabinet
3.IP65, waterproof for outdoor use
4.1000x500mm cabinet size
5.Lightweight with aluminum frame, only 5kg/pc, 10kg/sqm
6.High transparency, up to 72%
7.4,500nits brightness and 1,920HZ refresh rate
8.Creative solution for stage rental, 3D visual effect
9.Wide applications, such as concert, auto shows, exhibitions etc
Specification
| P3.91 | P7.8 | P10.416 | |
| Pixel pitch | H: 3.91mm, V: 7.8mm | H: 7.8mm, V: 7.8mm | H: 10.416mm, V: 10.416mm |
| Pixel density | 32,768 dots/㎡ | 16，384 dots/㎡ | 9，216 dots/㎡ |
| Pixel configuration | SMD1921 | ||
| Module size | 500×64.5mm | ||
| Cabinet size | 1000x500mm | ||
| Module resolution | 128×8 | 64×32 | 48×24 |
| Cabinet resolution | 256×64 | 128×64 | 96×48 |
| Scan mode | 1/16 scan | 1/8 scan | 1/6 scan |
| Brightness | 4,500 nits | 2,000 nits | 2,500 nits |
| Refresh rate | ≥1,920 HZ | ||
| Package | Wooden case/Flight case | ||
| Viewing angle | 140° (H)/140° (V) | ||
| Transparency rate | 56%/72% | 68% | 70% |
| Weight (kg/pc) | 5 | 5 | 5 |
| Power consumption (Max./Avg.) (W/㎡) | 480/184 | 480/184 | 380/114 |
Application Scenarios
