StarLink | Holographic Transparent LED Film

Pixel Pitch: P1.9mm, P2.6mm, P3.1mm, P3.9mm.
Cabinet Size: 1000x250mm, 750x250mm, 500x250mm.

1. Lightweight and slim LED Film, only 6kg/sqm, and 1.8mm thickness
2. High transparency rate up to 90%
3 .High brightness for day and night operation
4 .Creative holographic LED display solution
5.Available for both fixed installation and exhibition rental

Request a Quote

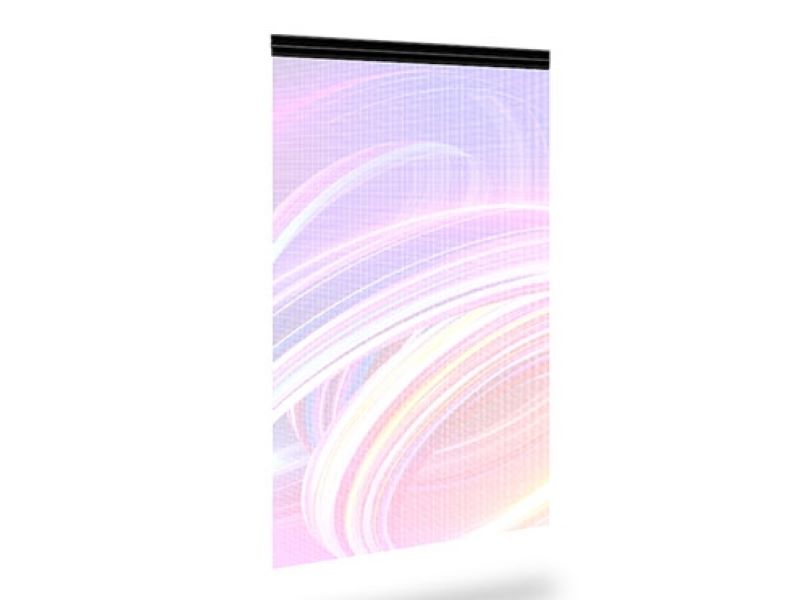

Stick on Glass Installation

Standard modules can be bent, cut, and used flexibly.
The best partner for curved glass and special-shaped screen.

One single LED module height max. is 1.5m high, can create a 3m high screen without any visible bar in the middle of the whole screen, which create amazing high transparent LED display effect.

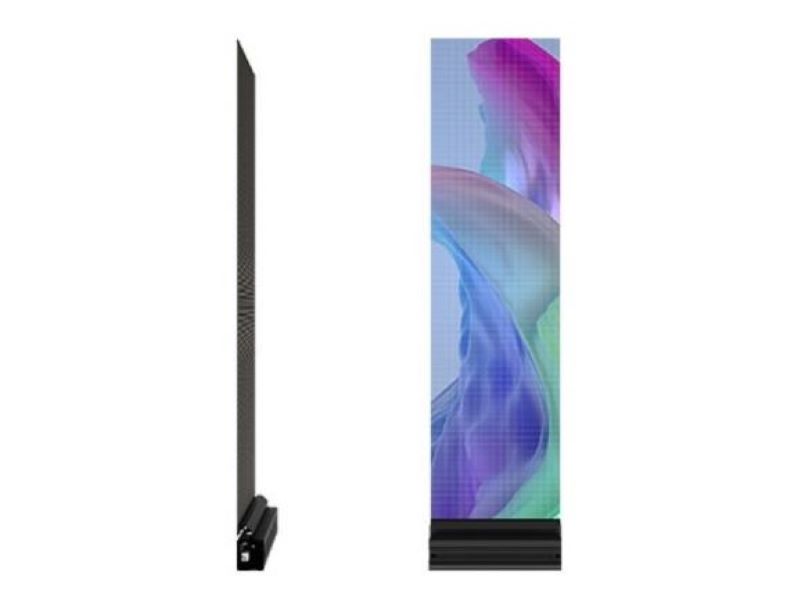

Hanging and Floor Standing Installation

Free-standing and Hanging poster available, and can be directly mounted on glass windows.

No Framework Required: The beauty of Transparent LED Film lies in its simplicity. No need for additional structures or frames. It perfectly integrates with the existing architecture, offering limitless possibilities for architects and designers to bring their vision to life.

Different Pixel Pitch

It’s a double sided LED display product, only 100% front service will work to manage the service.

Video

Specification

Model SL-TLED-2.5 SL-TLED-3.9 SL-TLED-6.25 SL-TLED10
Pixel Pitch (mm) (H/V) P2.5 / P2.5 P3.91 / P3.91 P6.25 / P6.25 P10 / P10
Visual Transparency Rate 70% 80% 90% 92%
Physical Transparency Rate 35% 50% 65% 70%
Pixel Density (dot / m²) 160,000 65,536 25,600 10,000
Module Size with pixels (mm) (W*H) 125×1000/125×1175 250×1000/250×1175/250×1468 250×1175/250×1475 250×1175/250×1475
Module Size with Edge (mm) (W*H) 250×1025 / 250×1200 250×1025/250×1200/250×1500 250×1200/250×1500 250×1200/250×1500
Module Resolution (dot) (W*H) 50×400 / 50×470 64×256 / 64×300/ 64×376 40×188 / 40×236 25×116 / 25×146
Maximum Screen Height (m) 2 3 3 3
Brightness (cd/m²) 1,500 – 1,800 2,200 – 4,000 4,500 – 5,000 4,000 – 4,500
Weight (kg/㎡) 6.5 6 6 6
Encapsulation Type LED & IC packed in one
Scanning Mode Static Driving (Single Pixel Single Control)
Lifespan ≥ 100,000.00 hours
Gray Scale 65,536 (16bit)
Maximum Power Consumption (w / m²) 1000
Average Power Consumption (w / m²) 300
Control System Novastar/Colorlight
Control Way Synchronous / Asynchronous
Input Voltage AC100~240V 50/60 Hz
Module Working Current DC 4.2V ± 0.2V
Operation Temperature 0~50℃
Operation Humidity 20%RH ~ 85%RH
Storage Temperature -20~60℃
Storage Humidity 10%RH ~ 85%RH
Certificate CE, EMC, LVD, CCC
Note: Specifications are for reference only and are subjected to change without notice.
