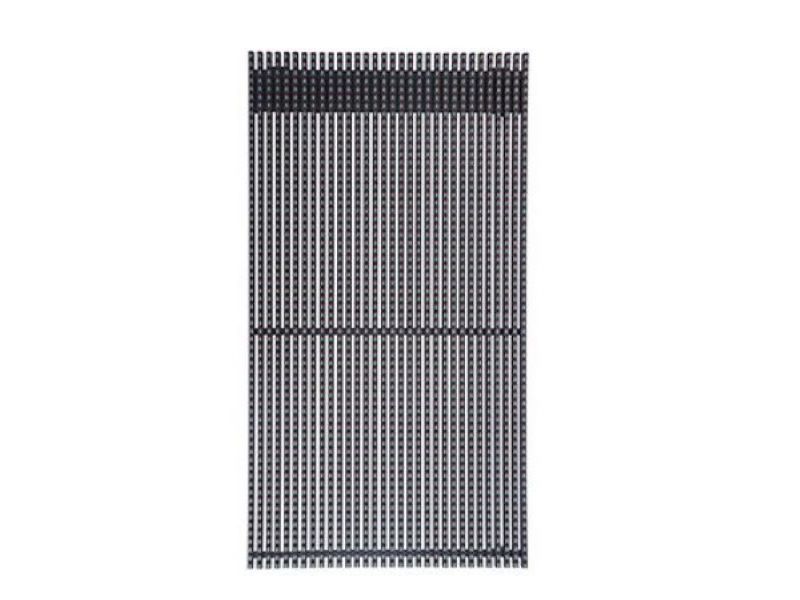

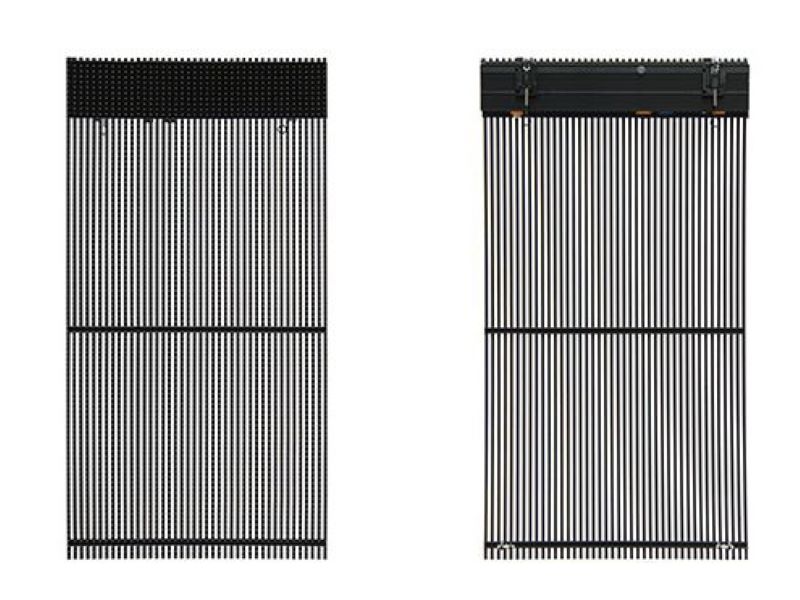

O-Tled – Outdoor See Through LED Display
Pixel Pitch: P5x10mm ~ P31.25mm
Cabinet Size: 500x1000mm
Exceptionally Lightweight and Ultra-slim
With astonishing average weight at 8-22kg/sqm, designed for ease of installation and maintenance, eliminating huge heavy load supporting structure reinforcement cost which is often associated with conventional LED video wall installation, besides apparent huge transportation and logistics benefits.
Groundbreaking Transparent Fanless Design
Groundbreaking cost-effective fanless self-cooling design renders OTled series ultra-slim structure and amazing 40-80% transparency. High transparency helps to maintain outdoor viewing from inside a venue while putting on a fabulous video show outside. Fabulously aerodynamic wind-resistant design allows OT series withstand harsh storms and typhoons.
Amazing All-weather IP67 Rated & Fabulously Aerodynamic Design
Amazing front/rear IP67 rated, UV-resistant, rendering OTled series a reliable solution for both indoor and outdoor environment, ensures trouble-free operation even in extreme temperatures of -30°C to 60°C.
Quality and Reliability
OTled series complies with relevant EMC legislations including CE-EMC, FCC and CCC
Environmentally Friendly and Cost Effective
OTled series consumes less power, lasts longer and can be produced, delivered, installed and disposed of more efficiently and cost effectively.
Specification
| Model | OT-N 5/10S | OT-N 10/10S | OT-N 10/20S | OT-N 12.5/12.5S | OT-N 15.6/15.6S |
| Pixel Pitch (V/H) | 5/10 mm | 10/10 mm | 10/20 mm | 12.5/12.5 mm | 15.6/15.6 mm |
| Panel Size | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm | 500(W)x1000(H)x68.5(D)mm |
| Panel Resolution (WxH) | 50×200 | 50×100 | 25×100 | 40×80 | 32×64 |
| Pixels/Square Meter | 20,000 pixels / m2 | 10,000 pixels / m2 | 5,000 pixels / m2 | 6,400 pixels / m2 | 4,096 pixels / m2 |
| Brightness | 6,500nits | 6,500nits | 6,500nits | 6,500nits | 6,500nits |
| Transparency Rate | 40% | 40% | 70% | 52% | 62% |
| LED Encapsulation | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel Configuration | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue |
| Life Time | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Horizontal View Angle | 140° | 140° | 140° | 140° | 140° |
| Vertical View angle | 140° | 140° | 140° | 140° | 140° |
| Input Voltage(working) | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Input Power Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Operation Temperature | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C |
| IP Rating F/R | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 |
| Processing | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT |
| Display Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Brightness Control | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels |
| Drive Method | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver |
| Max Power Consumption | 700 W/m2 | 700 W/m2 | 700 W/m2 | 700 W/m2 | 700 W/m2 |
| Average Power Consumption | 240 W/m2 | 240 W/m2 | 240 W/m2 | 240 W/m2 | 240 W/m2 |
| Weight/Panel | 8.8 Kg(17.6 Kg/sqm) | 8.3 Kg(16.6 Kg/sqm) | 4.5 Kg(9 Kg/sqm) | 6.8 Kg(13.6 Kg/sqm) | 5.6 Kg(11.2 Kg/sqm) |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Panel Type | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation |
| Certification | CE, EMC | CE, EMC | CE, EMC | CE, EMC | CE, EMC |
| Model | OT-L 12.5/25S | OT-L 12.5/25D | OT-L 15.6/31.2S | OT-L 20/20S | OT-L 25/25S | OT-L 31.2/31.2S |
| Pixel Pitch (V/H) | 12.5/25 mm | 12.5/25 mm | 15.625/31.25 mm | 20/20 mm | 25/25 mm | 31.25/31.25 mm |
| Panel Size | 500(W)x1000(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm | 500(W)x1500(H)x68.5(D)mm |
| Panel Resolution (WxH) | 20×80 | 20×120 | 16×96 | 25×75 | 20×60 | 16×48 |
| Pixels/Square Meter | 3,200 pixels / m2 | 3,200 pixels / m2 | 2,048 pixels / m2 | 2,500 pixels / m2 | 1,600 pixels / m2 | 1,024 pixels / m2 |
| Brightness | 6,500nits | 10,000nits | 10,000nits | 10,000nits | 10,000nits | 10,000nits |
| Transparency Rate | 48% | 48% | 59% | 35% | 48% | 59% |
| LED Encapsulation | SMD | DIP | DIP | DIP | DIP | DIP |
| Pixel Configuration | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue | 1Red 1Green 1Blue |
| Life Time | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours | >100,000 hours |
| Horizontal View Angle | 140° | 120° | 120° | 120° | 120° | 120° |
| Vertical View angle | 140° | 60° | 60° | 60° | 60° | 60° |
| Input Voltage(working) | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Input Power Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Operation Temperature | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C | -25 to +50°C |
| IP Rating F/R | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 | IP 66 |
| Processing | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT | True 16 BIT |
| Display Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Brightness Control | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels | 100 levels |
| Drive Method | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver | Current Static driver |
| Max Power Consumption | 700 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 | 500 W/m2 |
| Average Power Consumption | 240 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 | 170 W/m2 |
| Weight/Panel | 7 Kg(14 Kg/sqm) | 9.2 Kg(18.4 Kg/sqm) | 7.7 Kg(15.4 Kg/sqm) | 7.5 Kg(15 Kg/sqm) | 6.4 Kg(12.8 Kg/sqm) | 5.5 Kg(11 Kg/sqm) |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Panel Type | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation | Fix installation |
| Certification | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC | CE, EMC, CCC |
